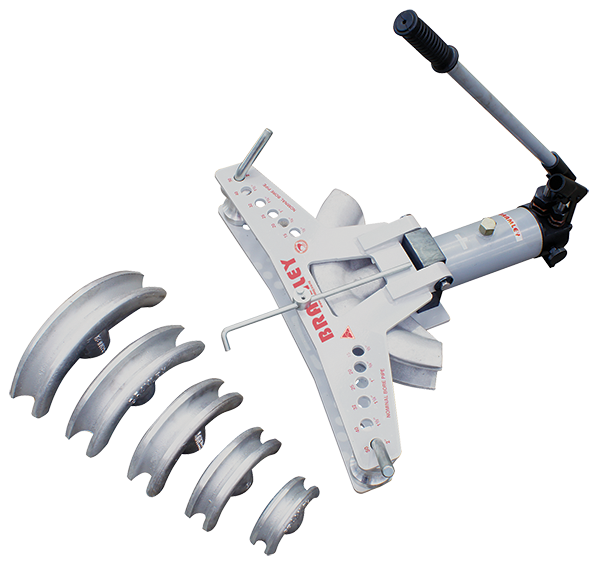

MANUAL HYDRAULIC PIPE BENDER

Description

Model 024 – 1/2” - 2” N.B.
Supplied with six formers, two bobbins (support slippers) and pins.
1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”.
Flip top frame for easy pipe and former replacement
Spring return ram
Bending radius measuring stop
Two-stage pump action
Lightweight aluminium alloy formers with large angle of arc to support pipe during bending. This results in a bend of superior quality
Cross section of formers is of “elliptical” form to minimise flattening of bend
Solid frame fabrication eliminates flexing during bending operation
Hydraulic ram is easily removed from frame and converts to 16 ton jack
Formers’ spigot size 38mm
Shipping: 64kg / 0.09m3
